What is the impact of pressure fluctuations on the drying process in a heated freeze dryer?
As a supplier of Heated Freeze Dryers, I've witnessed firsthand the critical role that pressure plays in the freeze - drying process. Freeze - drying, also known as lyophilization, is a method of preserving perishable materials by removing water through sublimation, where ice changes directly from a solid to a vapor without passing through the liquid phase. In a heated freeze dryer, the addition of heat speeds up this process, but pressure fluctuations can significantly affect the efficiency and quality of the drying.
Understanding the Basics of Freeze - Drying in a Heated System
Before delving into the impact of pressure fluctuations, it's essential to understand the normal operation of a heated freeze dryer. The process typically consists of three main stages: freezing, primary drying (sublimation), and secondary drying (desorption).
During the freezing stage, the product is cooled to a temperature below its eutectic point, which is the lowest temperature at which the mixture of substances in the product can exist in a liquid state. Once frozen, heat is applied in the primary drying stage to facilitate sublimation. The pressure in the drying chamber is reduced to a level where sublimation can occur efficiently. A heated freeze dryer uses external heat sources to provide the energy required for sublimation, which can shorten the drying time compared to unheated systems.
In the secondary drying stage, the remaining bound water is removed through desorption. The pressure is further reduced, and the temperature is increased slightly to break the bonds between the water molecules and the product.
Effects of Pressure Fluctuations on the Drying Process
Impact on Sublimation Rate
Pressure is a crucial factor in determining the sublimation rate. In a stable pressure environment, the sublimation process proceeds predictably. However, when pressure fluctuates, the sublimation rate can change abruptly.
If the pressure increases during the primary drying stage, the sublimation rate decreases. This is because higher pressure restricts the movement of water vapor molecules, making it more difficult for them to escape from the frozen product. As a result, the drying time is extended, and energy consumption increases. For example, if the pressure in the drying chamber rises from the optimal level of 0.1 mbar to 0.2 mbar, the sublimation rate may be reduced by up to 50%.
Conversely, a sudden drop in pressure can cause an overly rapid sublimation. This can lead to a phenomenon known as "puffing" or "blowing out" of the product. The rapid formation of water vapor can disrupt the structure of the product, causing it to lose its original shape and potentially reducing its quality. In some cases, the product may even be ejected from the drying trays.
Influence on Product Quality
Pressure fluctuations can also have a significant impact on the quality of the dried product. Inconsistent sublimation due to pressure changes can result in uneven drying. Some parts of the product may be over - dried, while others remain under - dried. This can affect the physical and chemical properties of the product, such as its solubility, rehydration ability, and shelf life.
For example, in the case of pharmaceutical products, uneven drying can lead to variations in the active ingredient concentration. This can compromise the efficacy and safety of the medication. In food products, uneven drying can result in differences in texture and flavor, making the product less appealing to consumers.
Impact on Equipment Performance
Pressure fluctuations can put additional stress on the heated freeze dryer equipment. The sudden changes in pressure can cause mechanical vibrations, which may damage the seals, gaskets, and other components of the drying chamber. Over time, this can lead to leaks, reducing the efficiency of the vacuum system and increasing the risk of contamination.
Moreover, the compressor and vacuum pump, which are responsible for maintaining the low pressure in the drying chamber, may experience increased wear and tear due to pressure fluctuations. This can result in more frequent breakdowns and higher maintenance costs.
Mitigating the Effects of Pressure Fluctuations
To minimize the impact of pressure fluctuations on the drying process, several strategies can be employed.
Advanced Pressure Control Systems
Modern heated freeze dryers are equipped with advanced pressure control systems that can maintain a stable pressure environment. These systems use sensors to monitor the pressure in the drying chamber continuously and adjust the vacuum pump and compressor accordingly. By regulating the pressure within a narrow range, the sublimation rate can be kept consistent, and the quality of the dried product can be improved.
Proper Equipment Installation and Maintenance
Proper installation and regular maintenance of the heated freeze dryer are essential for preventing pressure fluctuations. The drying chamber should be installed on a stable surface to minimize vibrations. The seals and gaskets should be checked regularly for leaks, and the vacuum pump and compressor should be serviced according to the manufacturer's recommendations.
Process Optimization
Optimizing the freeze - drying process can also help reduce the impact of pressure fluctuations. This includes carefully selecting the freezing rate, heating rate, and pressure setpoints based on the characteristics of the product. For example, some products may require a slower freezing rate to form smaller ice crystals, which can facilitate sublimation and reduce the sensitivity to pressure changes.
Our Heated Freeze Dryer Solutions

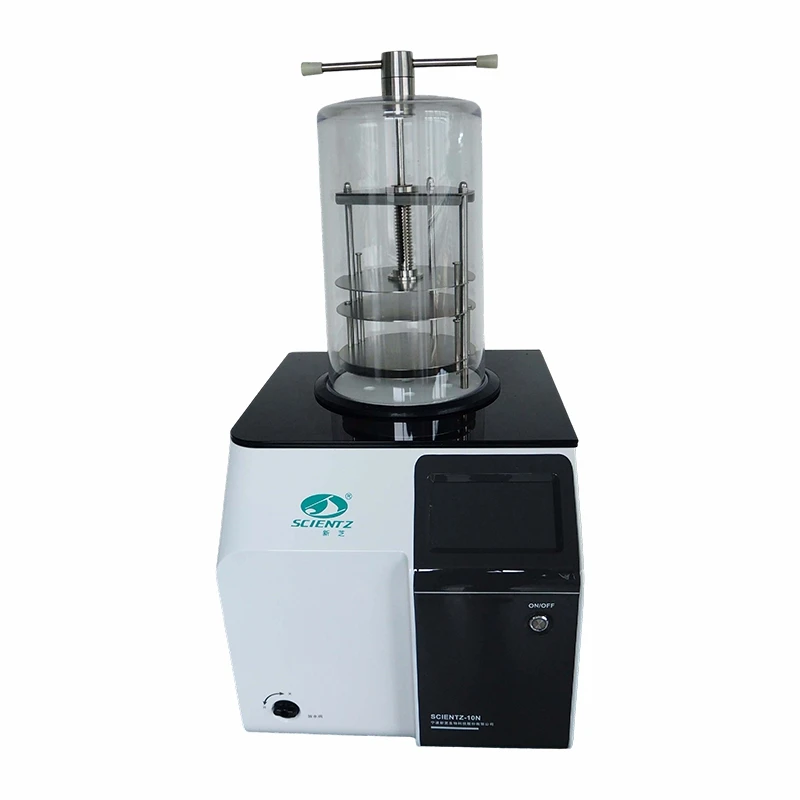

As a supplier of Heated Freeze Dryers, we offer a range of high - quality products designed to minimize the impact of pressure fluctuations. Our Heated Freeze Dryer is equipped with state - of - the - art pressure control systems that ensure stable operation. The advanced sensors and control algorithms can adjust the pressure in real - time, providing a consistent drying environment.

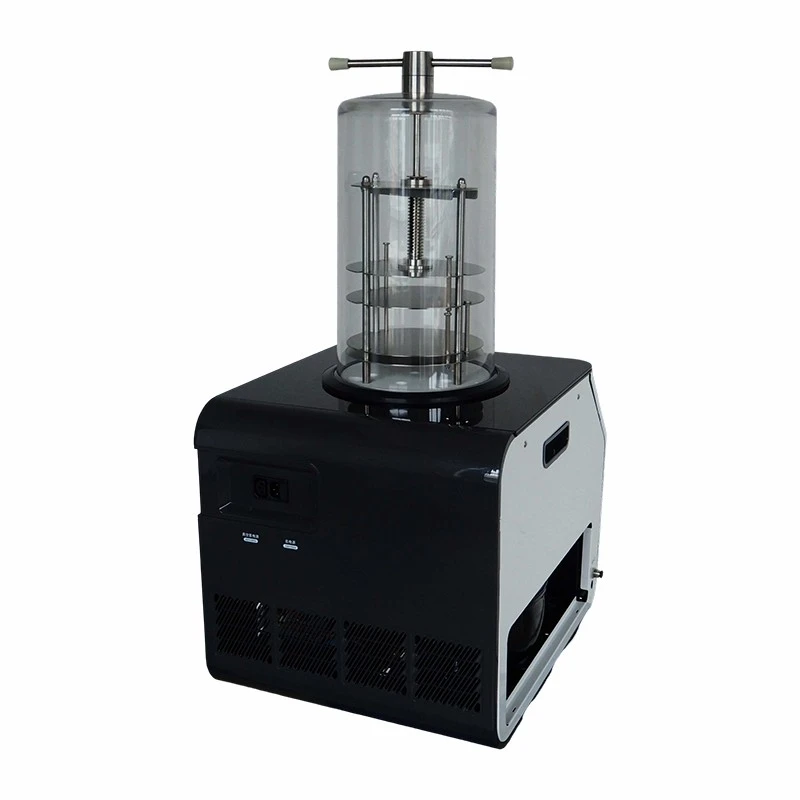

Our Bell Jar Freeze Dryer with Heater is another popular option. It features a user - friendly interface and a robust design, making it suitable for both laboratory and industrial applications. The bell jar design allows for easy observation of the drying process, and the heater can be precisely controlled to provide the optimal amount of heat for sublimation.
In addition, our Bell Jar Freeze Drying Machine is known for its reliability and efficiency. It is designed to handle a variety of products, from pharmaceuticals to food items, and can be customized to meet specific customer requirements.
Conclusion
Pressure fluctuations can have a significant impact on the drying process in a heated freeze dryer. They can affect the sublimation rate, product quality, and equipment performance. However, with the right strategies and equipment, these effects can be minimized.
As a leading supplier of Heated Freeze Dryers, we are committed to providing our customers with the best solutions for their freeze - drying needs. Our products are designed to ensure stable pressure control, high - quality drying, and long - term reliability. If you are interested in learning more about our Heated Freeze Dryers or have any questions about the freeze - drying process, please feel free to contact us for a consultation. We look forward to discussing your requirements and helping you find the perfect solution for your business.
References
- Wang, L., & Pikal, M. J. (2004). Design and optimization of freeze - drying processes: Practical advice. Pharmaceutical Research, 21(2), 191 - 200.
- Tang, X., & Pikal, M. J. (2004). Design of freeze - drying processes for pharmaceuticals: Practical advice. Pharmaceutical Research, 21(2), 191 - 200.
- Nail, S. L., Banker, G. S., & Jennings, T. A. (2002). Freeze - drying of pharmaceuticals. In Pharmaceutical Dosage Forms: Parenteral Medications (Vol. 2, pp. 305 - 347). Informa Healthcare.
