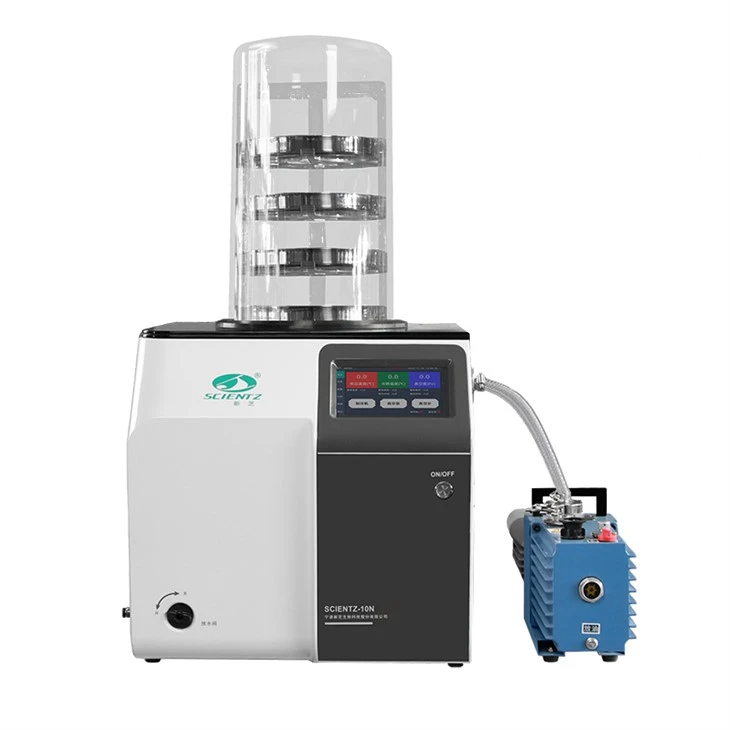

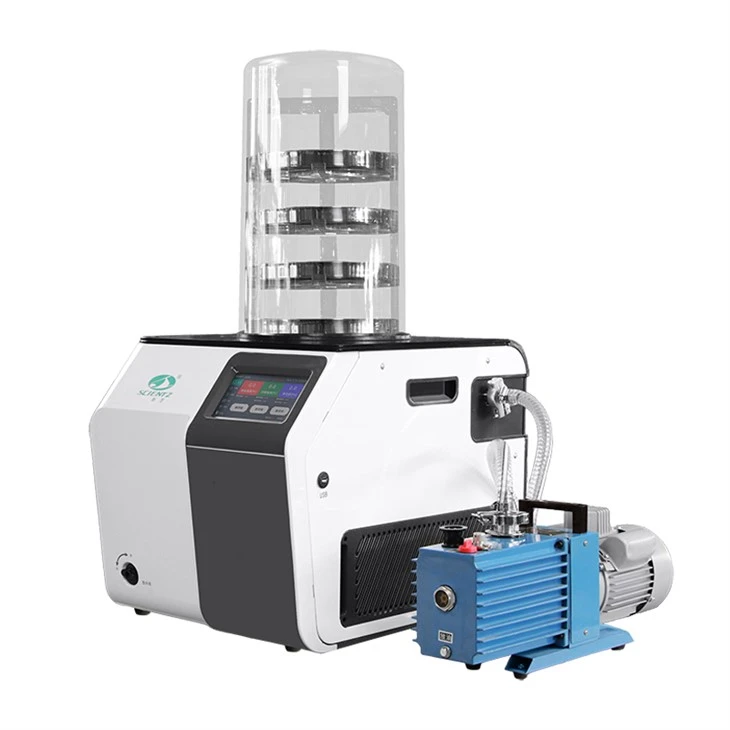

Standard Bell-Type Freeze Dryer
Ningbo Scientz Freeze Dryer Equipment Co., Ltd. is one of the most experienced manufacturers and suppliers of standard bell-type freeze dryer in China. Please rest assured to wholesale high quality standard bell-type freeze dryer made in China here from our factory. We also accept customized orders.
Key Features
Advanced Refrigeration System
Equipped with internationally renowned Secop (formerly Danfoss) compressors, achieving rapid cooling and a cold trap temperature as low as -56°C (unloaded). Optional cascade refrigeration extends this to -80°C for enhanced performance.
Intelligent Control & Data Management
Features a 7-inch color touchscreen with an industrial-grade embedded OS (ARM9 core), enabling fast response and large data storage. Automatically saves lyophilization curves, supports USB drive data export, and integrates with PC software for analysis and printing.

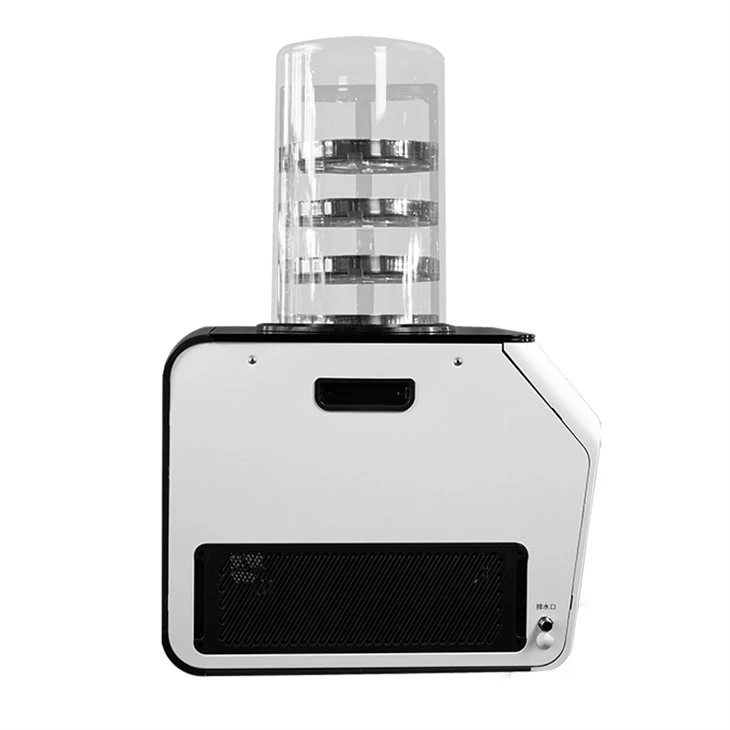

Transparent & Durable Drying Chamber
Made of corrosion-resistant, high-transparency polycarbonate, the bell-type chamber ensures clear visibility and airtight sealing. Compatible with standard KF quick connectors for vacuum pump integration.
Vacuum System Optimization
Smart vacuum pump activation (triggered only when the cold trap reaches preset temperatures) extends pump lifespan. Optional oil mist filters and anti-backflow valves enhance reliability.
Customizable Configurations
Supports add-ons like electric defrosting, inert gas filling, co-melting point testing, and remote APP/PC control for tailored workflows.
Technical Specifications
|
SCIENTZ-10N |
|||
|
Specifications |
Standard Type |
T-Type Fame |
|
|
Freeze-drying Area (㎡) |
0.12 |
/ |
|
|
Water capture capacity per batch (kg/batch) |
3 |
/ |
|
|
Vial loading capacity |
Ф12mm |
920 |
/ |
|
Ф16mm |
480 |
/ |
|
|
Ф18mm |
260 |
/ |
|
|
Number of Eggplant Type Bottles |
/ |
/ |
|
|
Ampoule Bottle Interface |
/ |
24 |
|
|
Tray Solution Volume (L) |
1.5 |
/ |
|
|
Tray Size (mm) |
Φ200 |
/ |
|
|
Tray Spacing (mm) |
70 |
/ |
|
|
Number of Trays |
4 |
/ |
|
|
Cold trap dimensions (mm) |
Φ250x150 |
||
|
Cold trap minimum temperature (°C) |
≤56(No Load) |
||
|
Ultra-low temp. cold trap (-80°C) |
≤80(No Load) |
||
|
Ultimate vacuum level (Pa) |
≤5(No Load) |
||
|
Power consumption Kw(220V/50Hz) |
0.95 |
||
|
Cryogenic power(-80°C ) |
1.35 |
||
|
Ambient temperature (°C) |
≤25 |
||
|
Overall dimensions (mm) |
610(L)x482(W)x455(H)+440 |
||
|
-80°C Ultra-low temp Type dimensions (mm) |
800(L)x525(W)x755(H)+440 |
||
|
Total weight (kg) |
55 |
/ |
|

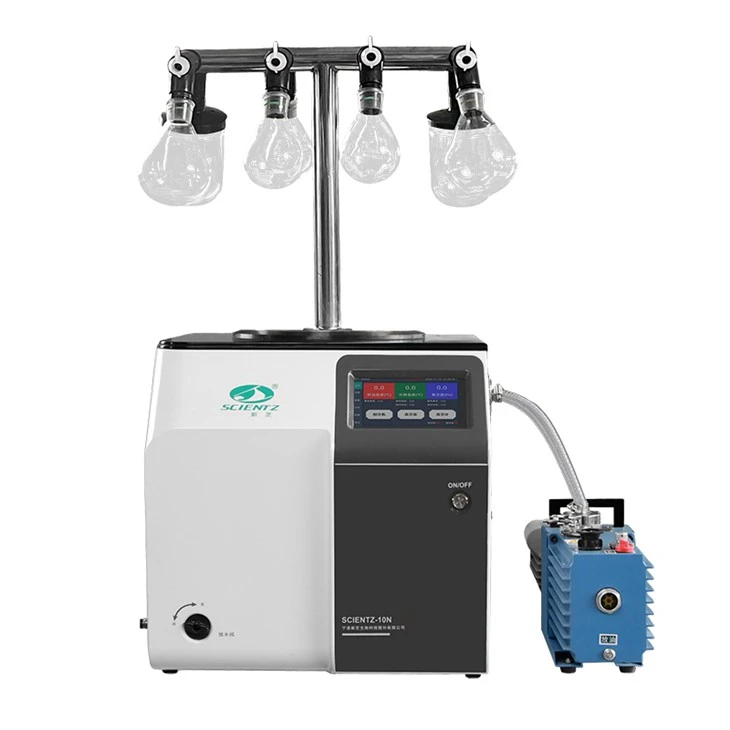

The T-type frame can be optionally configured with the main unit.
Optional features
• Cascade refrigeration units (cold trap temperature down to -80°C)
• Vacuum pumps from six different brands.
• T-shaped rack for eggplant-shaped bottles.
• Electric heating defrosting for the cold trap.
• Automatic nitrogen charging interface.
• Eutectic point testing.
Applications
• Pharmaceuticals: Dehydration of vaccines, antibiotics, enzymes, and serum.
• Food Science: Preserving coffee, fruits, and meat without nutrient loss.
• Biotechnology: Long-term storage of bacteria, tissues, and bioactive compounds.
• Materials Research: Drying nanoparticles and catalysts to prevent aggregation.
Why Choose the SCIENTZ-10N Standard Bell-Type Freeze Dryer?
Proven Reliability
Over 200+ lab visits and trusted by global institutions.
Modular Design
Flexible configurations (e.g., multi-manifold, T-type racks) adapt to diverse needs.
Energy Efficiency
Precision PID control reduces power consumption while maintaining performance.
Technical Support and Customization
Scientz offers lifetime technical support, including remote diagnostics, on-site training, and tailored solutions (e.g., GMP-compliant sterile systems or automated CIP/SIP functions).
